Product family information

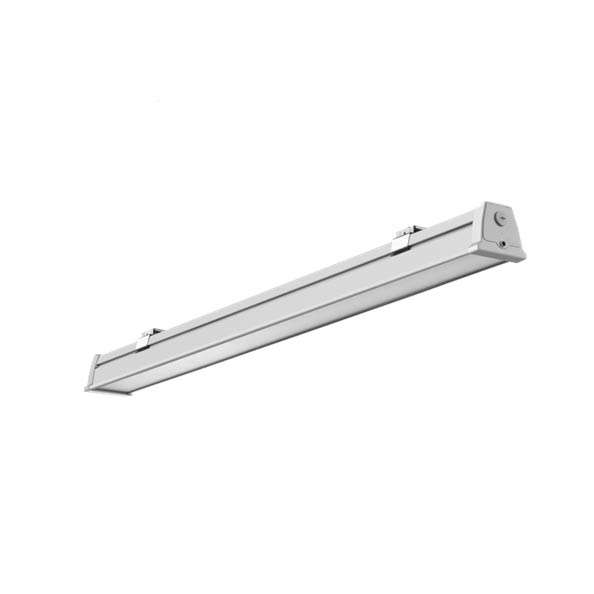

The CYVT series Vapor tight light are with metal housing and PC/PMMA/tempered glass diffuser. And the special prism designed diffuser effectively reduces glare and softens the light. These versatile fixtures can be used at different mounting heights and various temperature environments as well as lots places indoor or outdoor. With durable construction and long-lasting electrical components CYVT vapor proof lights are quite energy saving and provide long life span which especially suitable for harsh ambient. The design allows multiple luminaires to be connected in a line arrangement.

Features

  • Energy saving of 60% compared to fluorescent
  • Easy to install and maintain
  • Variety optical distribution
  • Excellent corrosion resistance
  • IP66 rated with hermatic sealing

Applications

  • Chemical Plant
  • Open or cloased parking lot
  • Agriculture&Animal husbandry
  • Food processing

Product family details

Type CYVT
Light source LED
Power (steady state in W, +/- 10%) 30W/40W/50W/60W
Beam angle 80-100º (depending on configuration)
Luminous flux 3500-7000 lm (depending on configuration)
Correlated Color Temperature 2700K-6500K
Color Rendering Index ≥ 80
Median useful life L80B50 50,000 hours
Operating temperature range -30 to +40°C
Driver Built-in
Mains voltage 220-240 V, 120-277V
Material Housing: galvanized steel
End caps: die-cast aluminum
Diffuser tempered glass
PC (polycarbonate)
PMMA (acrylic)
Installation surface
suspending with chain/cord/rod

CYVT30W-840EU-GM

CYVT40W-840EU-GM

CYVT50W-840EU-GM

CYVT60W-840EU-GM
