Product family information

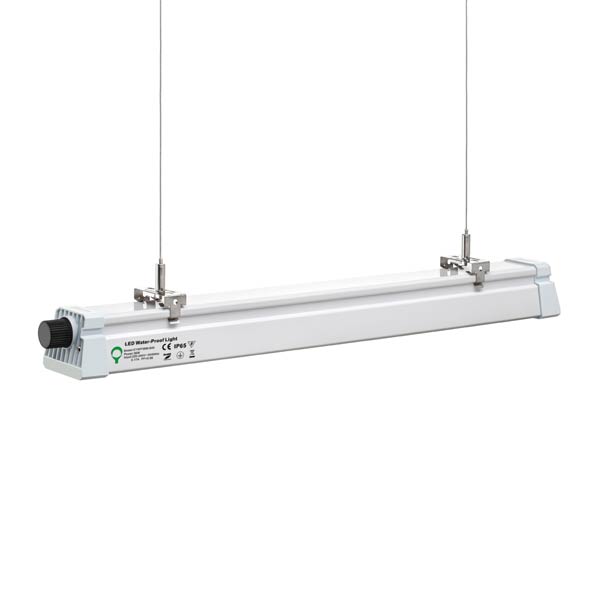

The CYWP series tri-proof light are with aluminium body and impact-resistent PC housing. Ingress-protected to a level of IP65, direct replacement for conventional waterproof luminaires in terms of light performance, installation flexibility and length. The design allows multiple luminaires to be connected in a line arrangement. A flexible ceiling clip facilitates easy installation and maintenance.

Features

  • Can be used to replace traditional waterproof luminaires ranging from 18 to 58 W TL-D
  • Easy to install and maintain
  • Wide-beam light distribution
  • IP66 for wet location

Applications

  • Parking garages
  • Warehouses
  • supermarket
  • metro

Product family details

Type CYWP
Light source LED
Power (steady state in W, +/- 10%) 18W/36W/48W
Beam angle 103º-108º (depending on configuration)
Luminous flux 1800-4800 lm (depending on configuration)
Correlated Color Temperature 2700K-6500K
Color Rendering Index ≥ 80
Median useful life L70B50 35,000 hours
Operating temperature range -20 to +40°C
Driver Built-in
Mains voltage 220-240V
Material Housing: aluminium
End caps: PC (polycarbonate)
Diffuser PC (polycarbonate)
Installation surface, wall mount
suspending

CYWP18M

CYWP36M

CYWP48M
